Intro

pgBackRest is a complete backup and continuous archiving solution for PostgreSQL offering support for point-in-time recovery (PITR), fast multi-threaded backup and restore, compression and encryption of backups, and more. In this article, we will explore pgBackRest’s features and present how to set up a basic pgBackRest configuration.

pgBackRest supports three kinds of backups: full, incremental, and differential. The full backup copies the entire content of the database cluster, while the incremental/differential backup copies only the database cluster files that have changed since the last full backup. The incremental backup helps to reduce backup time and disk space usage. By default, pgBackRest will attempt to perform an incremental backup in order to copy the database cluster files that have changed since the last backup, but if there is no previous backup, it runs a full backup.

Features:

Parallel Backup & Restore: To improve performance and transfer during backups, pgBackRest allows to set up multiple processes using lz4 and zstd compression algorithms. This may be specified in the --process-max parameter.

Local or Remote Operation: pgBackRest can restore and backup locally or remotely using TLS/SSH.

Full, Differential, & Incremental Backups (at File or Block Level): pgBackRest supports the following kinds of backups:

• Full backup: All the data is sent to another location.
• Differential backup: Only backs up the files that have changed since the last full backup.
• Incremental backup: Only backs up the files that changed since the last backup.

Backup Rotation & Archive Expiration: Retention policies can be set to backup for any time frame. For example, the WAL archive may be maintained for all backups or recent ones.

Backup Integrity: pgBackRest calculates checksums for every file in backups and are checked during a restore or a verify.

Page Checksums: PostgreSQL started to support Checksums on the 9.3 version. If checksums are enabled, pgBackrest will validate them according to the kind of backups. During full backups, pgBackrest will validate all of the checksums. During differential and incremental backups, only the files that changed will be validated.

Backup Resume: If a backup is interrupted, it may be restored. Files that were already copied are compared with the checksums. This saves time because recalculating the checksums is faster than retransmitting data.

Streaming Compression & Checksums: Compression and checksum calculations are performed while the files are being copied to the repository.

Delta Restore: PgBackRest saves the checksums for every backup file so as to speed up any restore. In the case of a Delta Restore, files not present in the backup are removed, and checksums are created for the rest of the files. The files that match the backup stay the same while the rest are restored.

Parallel, Asynchronous WAL Push & Get: The Push and Get commands are available to push and get the WAL to and from the archive.

Tablespace & Link Support: Tablespaces and directory links are supported. Tablespaces can be remapped to any location. Additionally, links can be restored to their original locations, be remapped, or be restored as files or directories within the cluster.

S3, Azure, and GCS Compatible Object Store Support: PgBackRest’s repository can be stored on Amazon S3, Azure, and GCS compatible object stores.

Encryption: PgBackrest can encrypt the repository to secure stored backups.

Compatibility with ten versions of PostgreSQL: PgBackRest is committed to maintain compatibility with the five supported versions of PostgreSQL and the five end-of-life versions.

Installation Guide:

To install pgBackRest on an Ubuntu operating system, you may run the following commands:

sudo apt update

sudo apt -y install pgbackrest

If pgBackRest is not provided in your distribution, you may find more information on https://pgbackrest.org/user-guide.html#installation

Demo: Performing Your First Backup

For this demo, we will configure pgBackrest with Postgres and simulate a backup. This is a simple setup in which no replicas are used.

Open the Postgres config_file with your preferred text editor. To find where your config_file is located, you may enter the following on a terminal:

sudo -iu postgres

psql

SHOW config_file;

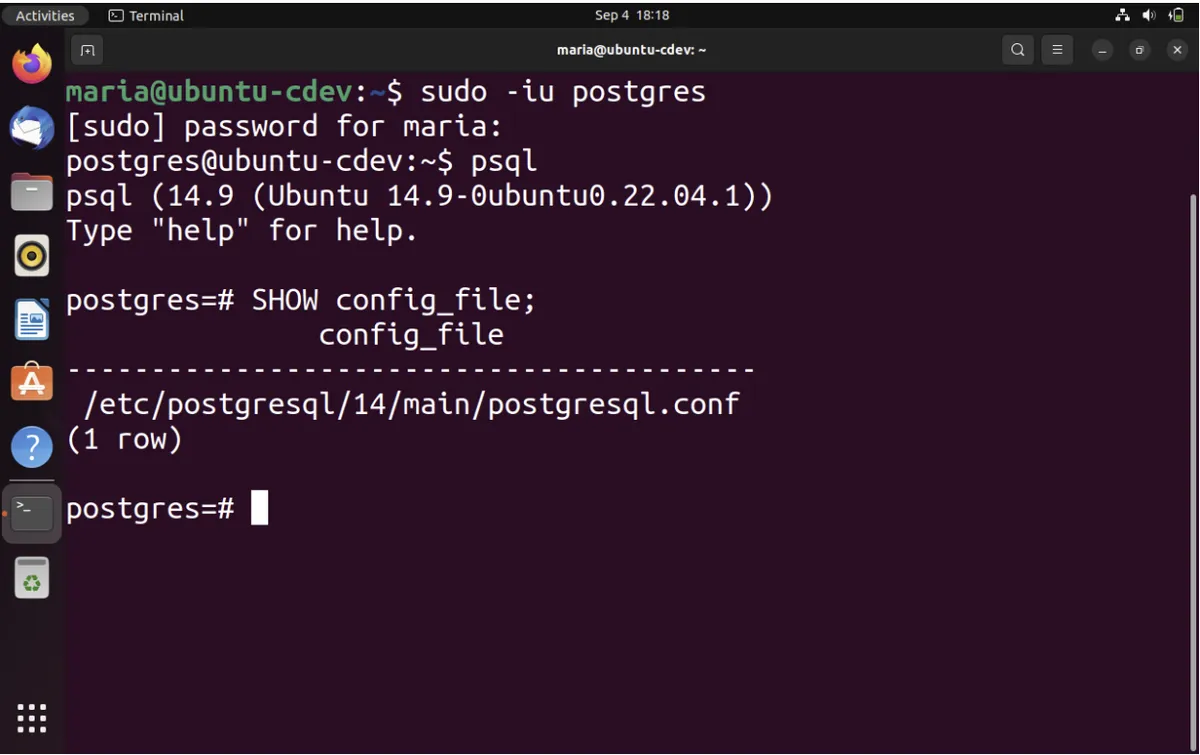

This is will display the following:

Once you find your file, edit the following parameters:

listen_addresses = '[host IP address]'

password_encryption=’scram-sha-256’

archive_mode = on

Now, reset the service so that the changes take effect:

sudo systemctl restart postgresql-[version].service

To check that the parameters have been updated, you may type the following commands and query:

Sudo -iu postgres

Psql

SELECT name,setting,context,source FROM pg_settings WHERE NAME IN ('listen_addresses','archive_mode','password_encryption');

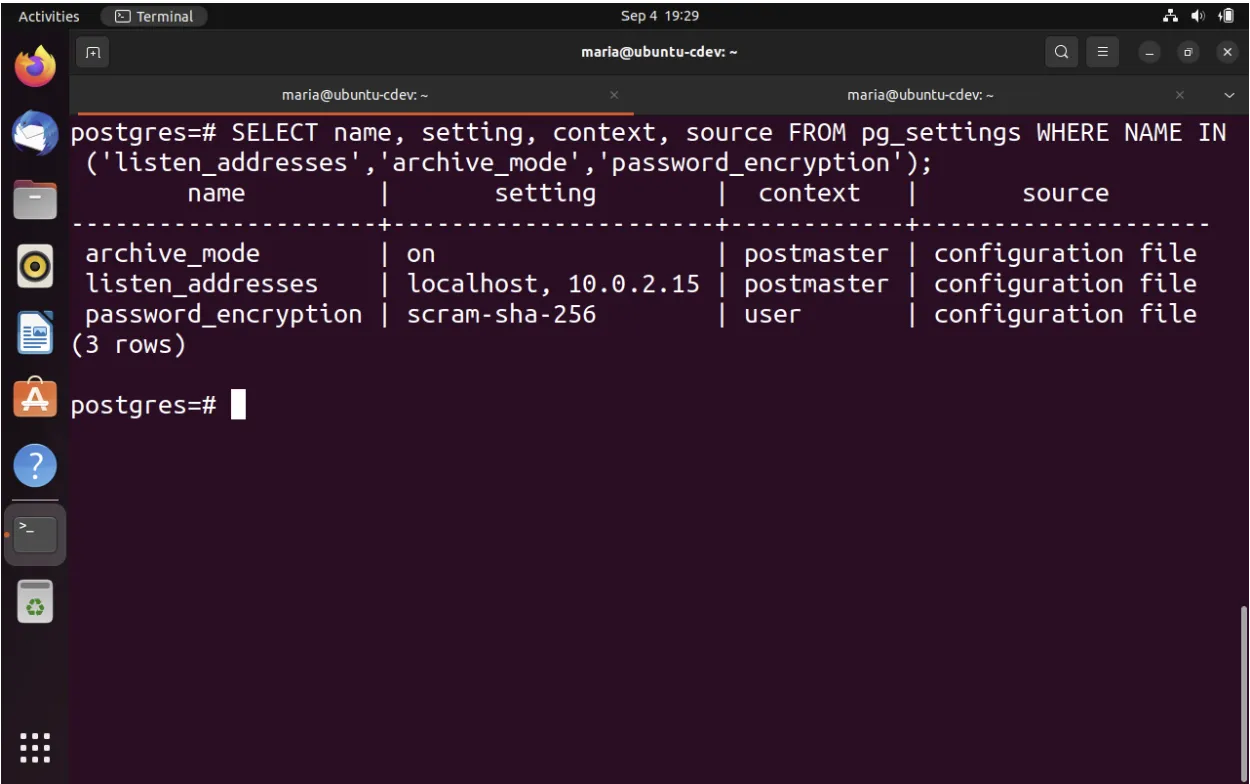

This will display a table with the updated values:

Create the pgBackRest backup repository:

sudo mkdir -p /var/lib/pgbackrest

sudo chmod 750 /var/lib/pgbackrest

sudo chown postgres:postgres /var/lib/pgbackrest

sudo chown -R postgres:postgres /var/log/pgbackrest

Create a backup for your pgBackRest configuration file:

sudo cp /etc/pgbackrest.conf /etc/pgbackrest.conf.backup

Now we are going to generate a key to encrypt the repository:

openssl rand -base64 48

Edit the pgbackrest.conf file using your preferred text editor. Paste the following in the file:

[global]

repo1-cipher-pass=[Copy your previously generated key]

repo1-cipher-type=aes-256-cbc

repo1-path=/var/lib/pgbackrest

repo1-retention-full=2

log-level-console=info

log-level-file=debug

[demo]

pg1-path=/var/lib/postgresql/[version]/main

Now, we can create our stanza, which we’ll call demo like the name of the repository:

sudo -u postgres pgbackrest --stanza=demo stanza-create

Now that everything is set up, we can perform a backup. First, open your Postgres config file and edit the archive_command parameter as follows:

archive_command = 'pgbackrest --stanza=demo archive-push %p'

For the changes to be applied, we need to reload the database:

sudo systemctl reload postgresql-[version].service

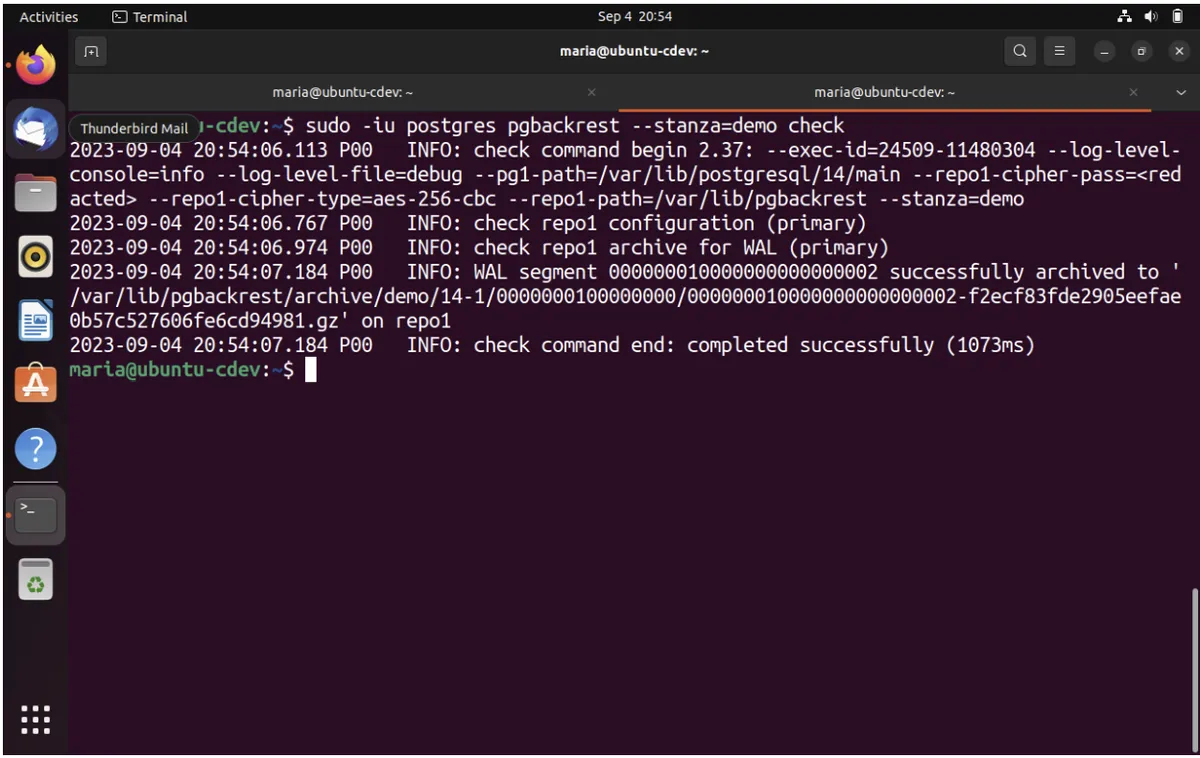

Now, let’s check if our stanza is okay:

sudo -iu postgres pgbackrest --stanza=demo check

Now we can finally perform the backup with the following command:

sudo -u postgres pgbackrest --stanza=demo --type=full backup

This command could take five minutes by default because of the checkpoint_timeout parameter on postgres. A checkpoint is a point on the sequence of transactions in which changes to datafiles are guaranteed to be already on disk. The server performs a checkpoint every scheckpoint_timeout seconds or if the max_wal_size parameter is about to be exceeded. Though reducing the scheckpoint_timeout results in more frequent checkpoints (thus speeding up after-crash recovery because there are fewer datafiles to recover), it is not recommended because constantly writing dirty pages to disk might overload the I/O system by increasing traffic to the WAL log.

Now we must confirm that our stanza exists has a full backup:

Sudo -u postgres pgbackrest info

Let’s simulate a system administration disaster by deleting the database data files.

First, stop the postgresql service:

sudo systemctl stop postgresql-[version].service

sudo find /var/lib/pgsql/12/data -mindepth 1 -delete

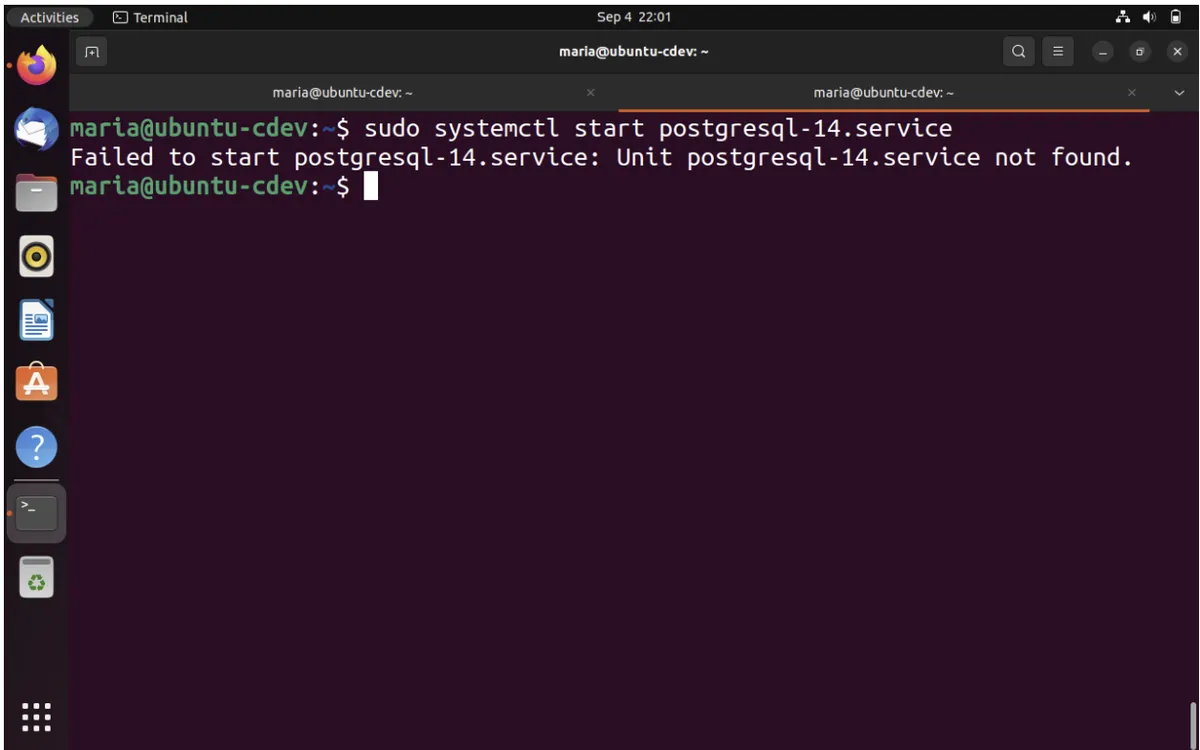

If we try to start the database, this will result in failure as follows:

sudo systemctl start postgresql-[version].service

Now that we have deleted all these data files, let’s go ahead and restore them:

sudo -iu postgres pgbackrest --stanza=demo --delta restore

We should be able to start postgresql again:

Sudo systemctl start postgresql-[version].service

Check whether pgBackRest is working:

sudo -u postgres pgbackrest --stanza=demo check

Finally, it is good practice to perform another backup after a disaster instance:

sudo -u postgres pgbackrest --stanza=demo --type=full backup

Conclusion

This article we discussed pgBackrest’s features, as well as how to install and perform a backup on a sample database.

Recapping the steps we took in our backup:

• Update the archive_mode and encryption parameters in your configuration file
• Create the pgBackRest backup repository
• Create a backup for your pgBackRest configuration file
• Generate a key to encrypt the repository
• Update you pgbackrest.conf file to add cypher and path information for the repository
• Create a stanza
• Update the archive_command parameter in the postgres configuration file as 'pgbackrest --stanza=[stanza_name] archive-push %p'
• Stop the postgres service and delete its data files to simulate a disaster
• Restore the database with “sudo -iu postgres pgbackrest --stanza=[stanza_name] --delta restore”
